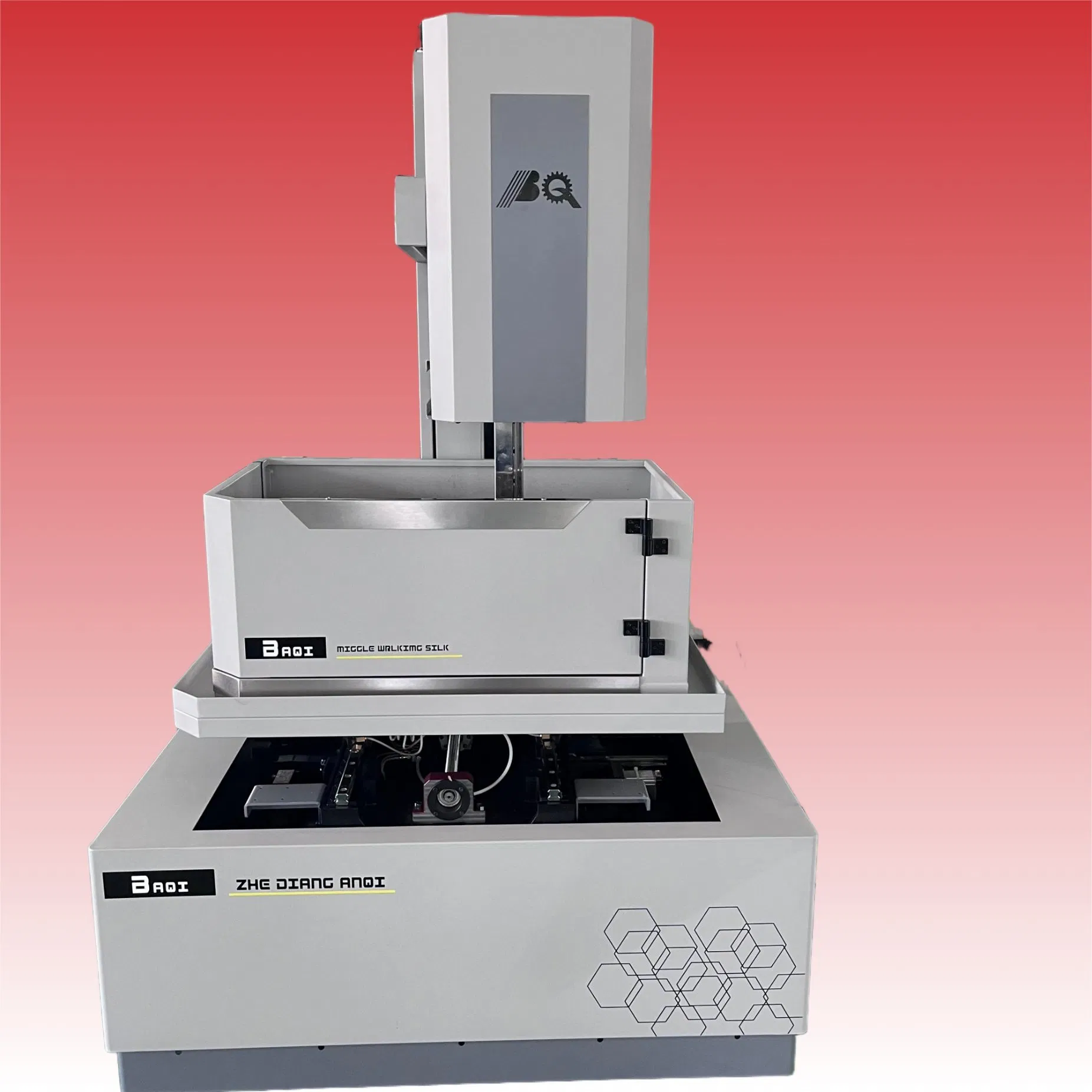

The Different Type Bq400 Medium-Speed Brass Wire Cut EDM Machine
USD 18000,00 – 22000,00
/ piece
Цена зависит от количества и характеристик
| Мин. кол. | 1 piece |
| Категория | General |
11
Лет
98%
Ответ
24h
Ответ
Ещё от этого поставщика
Описание товара
Подробное описание недоступно. Отправьте запрос для получения информации.
Технические характеристики
| Model NO. | BQ400 |
| Process Usage | CNC Non-Conventional Machine Tools |
| Movement Method | Linear Control |
| Control Method | Closed-Loop Control |
| Numerical Control | CNC/MNC |
| Processing Precision | 0.01~0.02(mm) |
| Performance Classification | High-End CNC Machine Tools |
| Certification | GS, CE, RoHS, ISO 9001 |
| Condition | Used |
| Keywords | Medium-Speed Wire Cut EDM |
| Worktable Size(mm) | 735×460mm |
| X/Y Travel (mm) | 400×320mm |
| Max Workpiece Size (mm) | 800×500mm |
| Max Cutting Thickness (mm) | 300mm |
| Max Load Weight (Kg) | 400kg |
| X/Y Min.Directive Unit (mm) | 0.001mm |
| U/V Travel (mm) | 80×80 |
| "Max Cutting Taper (with Top/Bottom Wate | ±15°/150 mm |
| U/V Min.Directive Unit(mm) | 0.001mm |
| Z Transmission | Numerical Control |
| Max Travel of Wire Drum(mm) | 200 |
| Transport Package | Standard Packaging or Customized |
| Specification | Standard Specifications or Customized |
| Trademark | ZHEJIANGBAQI |
| Origin | Zhejiang, China |
